Product Details
＋
Order with any of our other products, enjoy FREE Add-On shipping (No extra shipping charge to be added)
Matching Drive Tool:
This can be used for our tubing legs. CAN NOT be used for our hairpin legs and pipe legs.
Matching Bolts and Washer:
Features
- Provide sturdy machine threads in soft woods.
- Provide exceptional holding power in materials like pine, composition board, MDF, and plywood.
- Die-cast from a durable zinc alloy
- Install with Allen wrench or optional drive tool
- Flush and flanged designs available
- Ideal solution for any application where assembly or disassembly could lead to thread erosion or stripping.

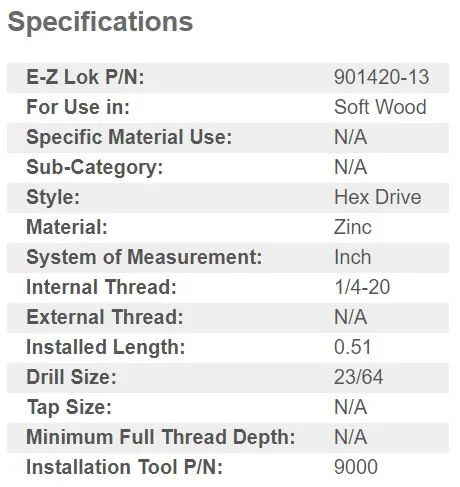

Specifications
| E-Z Lok P/N: | 901420-13 |
| For Use in: | Soft Wood |
| Specific Material Use: | N/A |
| Sub-Category: | N/A |
| Style: | Hex Drive |
| Material: | Zinc |
| System of Measurement: | Inch |
| Internal Thread: | 1/4-20 |
| External Thread: | N/A |
| Installed Length: | 0.51 |
| Drill Size: | 23/64 |
| Tap Size: | N/A |
| Minimum Full Thread Depth: | N/A |
| Installation Tool P/N: | 9000 |
SKU: 901420-13
